📝 DOCUMENTATION

I. Design

1. Project Overview

This project simulates a data system for a coffee shop chain with two primary goals:

• Real-time product suggestions based on new customer orders
• Daily batch processing for analytics-ready data

It is designed to strike a balance between low-latency business needs and scalable analytical workloads, using a hybrid architecture that includes both streaming and batch components.

2. Business Requirements

Real-Time: Product Suggestion

When a new order is placed, the system should evaluate whether it qualifies for a product suggestion. The following conditions must be met:

• The payment method is bank transfer, and the bank is ACB
• The customer is a diamond-tier member

If all conditions are met, a product with a special discount is suggested — different from those already ordered. We will assume that all product suggestions are accepted by customers.

Batch: Daily Analytics Preparation

Each day, raw data is processed to support reporting and dashboarding. This includes:

• Ingest: Load new data from MySQL into the lakehouse
• Clean: Validate and transform the data
• Store: Persist structured, queryable datasets for downstream tools

3. Data Source

The data is divided into several CSV files and used as follows:

1. product.csv: A list of products sold in the coffee shop.
   • id: Unique ID of the product
   • name: Name of the product
   • category_id: ID of the category this product belongs to
   • unit_price: The price of the product
   • updated_at: Timestamp of the last update to this product’s data
2. product_category.csv: The category of the product.
   • id: Unique ID for each product category
   • name: Name of the category
   • updated_at: Timestamp of the last update to this category’s data
3. store.csv: The branches of the coffee shop.
   • id: Unique ID for each coffee shop location
   • name: Name of the coffee shop branch
   • address: The address of the coffee shop
   • district: The district where the branch is located
   • city: The city that the branch is located.
   • updated_at: Timestamp of the last update to this store’s data.
4. payment_method.csv: The payment methods supported by the coffee shop
   • id: Unique ID for each payment method
   • method_name: The name of the payment method (e.g., Cash, Credit Card, etc.)
   • bank: Bank associated with the method (used for bank transfer only).
   • updated_at: The date when the payment method data was last updated.
5. diamond_customers.csv: List of diamond-tier customers.
   • id: Unique identifier for the customer.
   • name: The name of customer.
   • phone_number: Customer’s phone number.
   • updated_at: Timestamp of the last update to this diamond customer’s data.
6. orders: This data is generated automatically via a Python script. It includes detailed information about the orders info and loaded into MySQL.
   • id: Unique ID for each order.
   • timestamp: Date and time when the order was placed.
   • store_id: The ID of the store where the order took place.
   • payment_method_id: The payment method used for the order.
   • customer_id: Customer who orders.
   • status: The status of the orders (pending or completed).
7. order_details: Auto-generated data representing products in each order (loaded into MySQL)
   • order_id: Identifier linking to the corresponding order.
   • product_id: ID of the purchased product.
   • quantity: Quantity of the product purchased.
   • discount_percent: Discount applied to this product (used in business logic).
   • subtotal: Total price for this product (unit_price × quantity)
   • is_suggestion: Indicates whether this product was suggested (used in business logic).

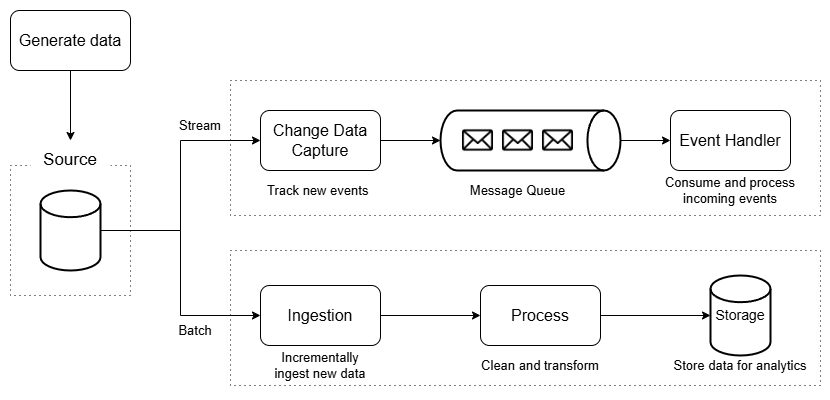

4. Architecture at a Glance

The system separates responsibilities into two pipelines:

• Real-time pipeline: Handles event-driven product suggestion logic upon new orders
• Batch pipeline: Periodically transforms and stores data into the Lakehouse for analytics

5. MySQL: Transactional Landing Zone

MySQL is used as the initial data store for real-time order generation, chosen for its:

• Compatibility with CDC tools like Kafka Connect
• Support for ACID transactions
• Easy integration with Python-based data generators

This layer includes core tables such as orders, order_details, and reference tables like products, stores, payment_methods, etc.,

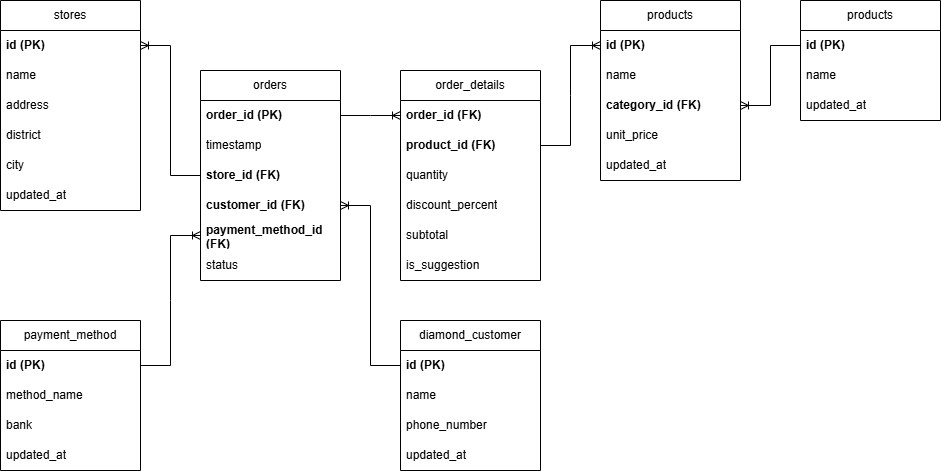

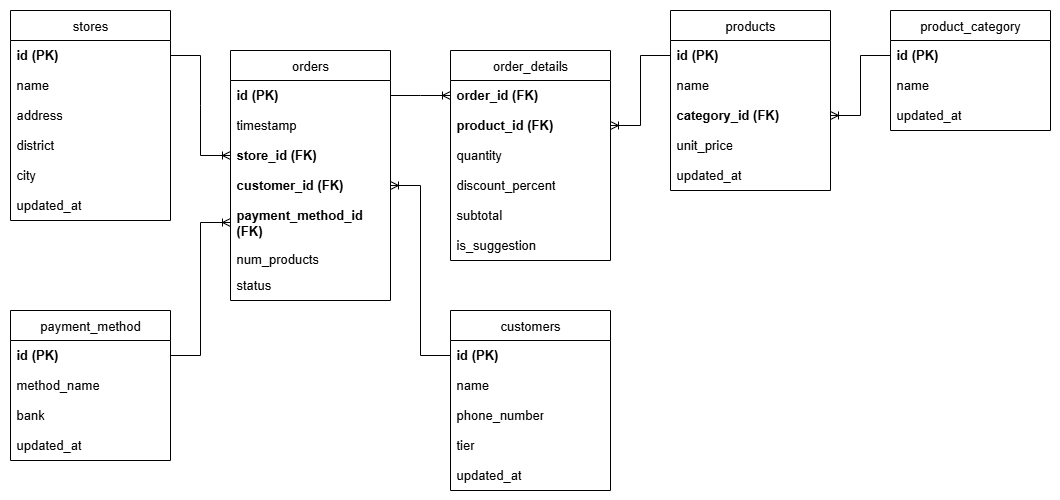

The ER diagram below illustrates the relationships between the core tables:

6. Lakehouse Architecture

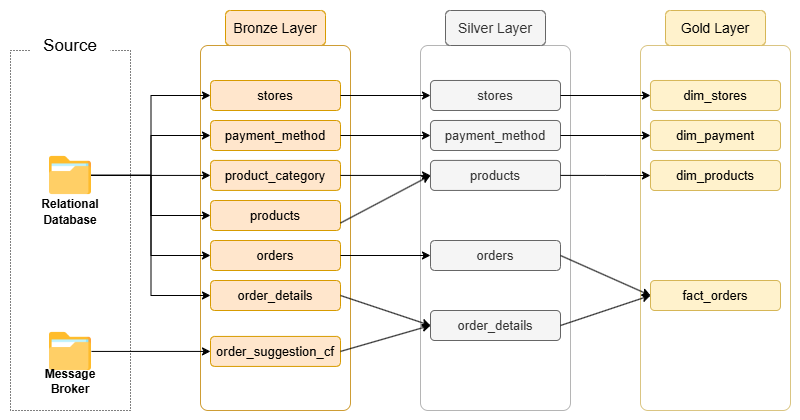

In the lakehouse, we structure data using the Medallion Architecture:

• Bronze: raw data ingested from source systems
• Silver: cleaned, transformed and joined data
• Gold: aggregated and business-consumable data for dashboarding and analytics

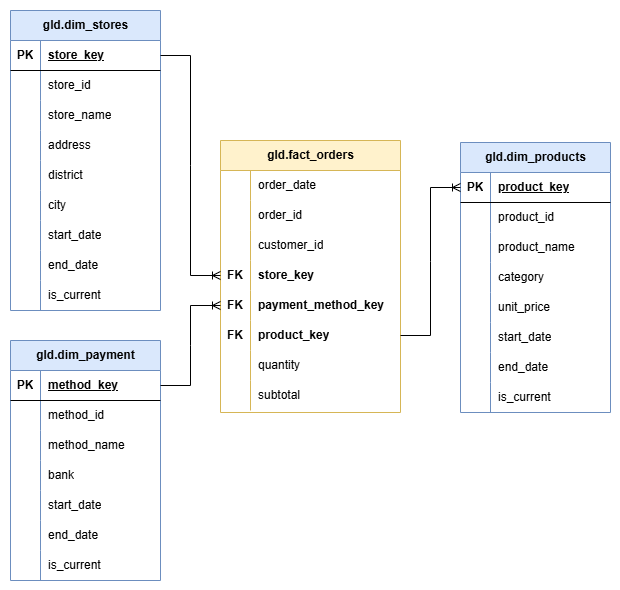

Data Model in Gold Layer

Gold Layer Data Catalog

gld.dim_products

Provides information about the products and their attributes.

Column Name	Data Type	Description
product_key	int	Surrogate key for the product (unique per version for SCD2 tracking).
product_id	string	Natural/business key from the original product source.
product_name	string	Name of the product.
category	string	Category that the product belongs to.
unit_price	int	Price per unit of the product.
start_date	date	Date when this version of the product record became valid.
end_date	date	Date when this version stopped being valid (null if current).
is_current	boolean	Indicates whether this is the current version of the product (true/false).

gld.dim_stores

Provides information about store locations and their attributes.

Column Name	Data Type	Description
store_key	int	Surrogate key for the store (unique per version for SCD2 tracking).
store_id	int	Natural/business key from the original store source.
address	string	Full address of the store.
district	string	District where the store is located.
city	string	City where the store is located.
start_date	date	Date when this version of the store record became valid.
end_date	date	Date when this version stopped being valid (null if current).
is_current	boolean	Indicates whether this is the current version of the store (true/false).

gld.fact_orders

Captures detailed coffee shop order transactions for reporting and analysis.

Column Name	Data Type	Description
order_date	date	The date when the order was placed.
order_id	string	Unique identifier for each order.
customer_id	int	Identifier for the customer who placed the order.
store_key	int	Foreign key referencing the store dimension.
payment_method_key	int	Foreign key referencing the payment method used.
product_key	int	Foreign key referencing the purchased product.
quantity	int	Number of units of the product ordered.
subtotal	int	Total cost for the product line.

7. Data Pipeline Design

Real-time Flow

Order events are captured via Kafka Connect from MySQL. And Kafka Consumers check the following conditions to determine whether a product suggestion should be made:

• Whether the customer is a diamond-tier member
• Whether the payment method is bank transfer
• Whether the associated bank is ACB

If all conditions are satisfied, the system suggests a product different from those already ordered. And then suggestions are published to the order_suggestion_accepted topic.

Caching Strategy for Real-time Processing

Since condition checks are performed continuously in real time, lookup tables are cached in Redis to optimize performance:

• products: List of all available products
• payment_methods: Only ID of method bank transfer and bank name ACB
• diamond_customers: List of all customers with diamond-tier membership
• order_info: Mapping of order_id to customer_id and payment_method_id for fast access

Batch Flow

Data is loaded into the Lakehouse following the Medallion Architecture.

• Incremental Load is applied to optimize data processing.
• Slowly Changing Dimension (SCD Type 2) is implemented for dimension tables to preserve historical changes.
• Airflow orchestrates daily ETL jobs with clear dependencies.

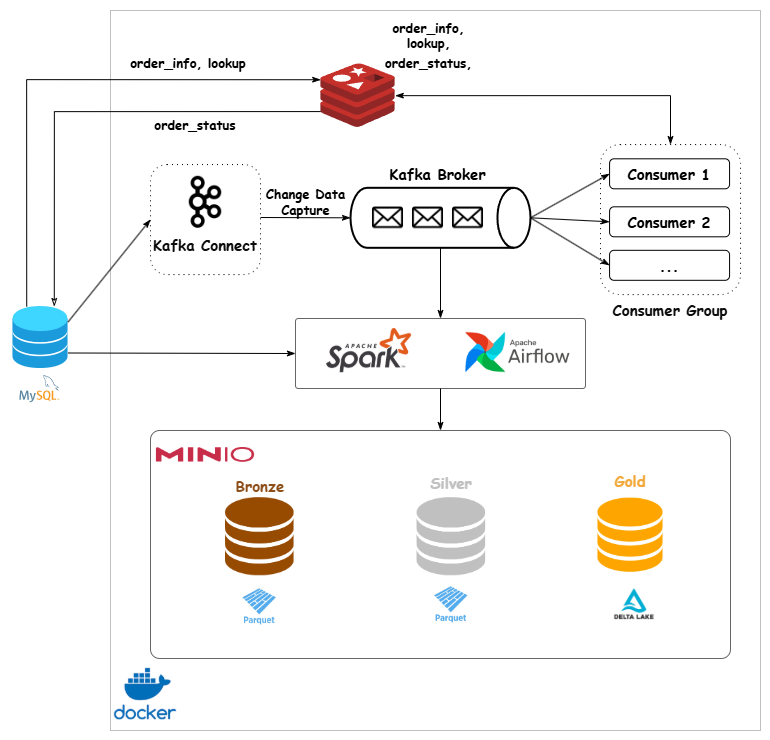

Technology Choices: Why They Matter

To support both real-time responsiveness and scalable analytics, this project combines various technologies, each chosen for specific reasons:

• Kafka is adopted due to the event-driven nature of the product suggestion logic, which must react instantly as new orders arrive. Kafka enables this by:

  • Supporting Change Data Capture via Kafka Connect for syncing new orders in near real-time.
  • Offering parallel processing through partitioned topics, allowing multiple consumers to handle multiple orders in parallel.

• Redis is used to cache lookup data (e.g., products, diamond-tier customers, payment methods) to reduce excessive database access and enable fast condition evaluation. This avoids redundant queries and supports low-latency processing at scale.

• Apache Spark is chosen to build the Lakehouse architecture:

  • Handles both structured and semi-structured data.
  • Supports efficient storage formats like Parquet, which reduce storage costs via compression and columnar encoding.
  • Integrates with Delta format, which adds ACID compliance, time travel, and incremental processing capabilities — all essential for building reliable, maintainable batch pipelines and Slowly Changing Dimensions (SCD Type 2).

• Airflow is used to orchestrate repetitive batch jobs, removing the need for manual intervention.
